SO2208 Details
SO2208 Autopilot Description
Technical Specifications

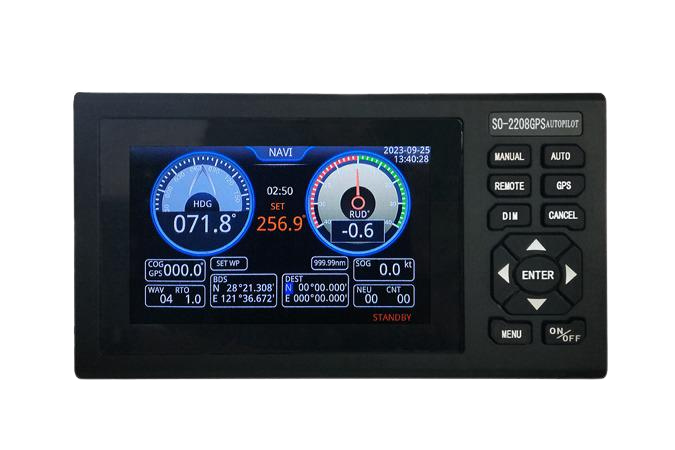

Front Panel — Indicators
| Indicator | Description |
|---|---|
| GPS course | — |
| Heading course | — |
| Current mode | — |
| Compass scale | — |
| On-duty alarm countdown | — |
| Course angle | — |
| Current location | — |
| Target distance | — |
| Target location | — |
| Target course | — |
| Adjust according to functions of wave and rudder angle ratio | — |
| Adjust according to functions of neutral and rudder balance | — |
Front Panel — Buttons & Functions
| Button / Item | Function |
|---|---|
| Mode | Manual mode / Follow-up mode / AUTO mode / GPS mode |
| “DIM” button | Adjust 8 levels of backlight brightness |
| “CANCEL” button | Return to previous page in all modes |
| “∧” button |
Speed limit setting: press the “∧” and “∨” buttons to change the
speed limit, then press “ENTER” to execute. “∧” button can increase the value in various modes (see page 18). |
| “∨” button |
Press in Manual / Follow-up / AUTO mode to save the current
waypoint. Press “∧” or “∨” to select waypoint storage location 001–020. Decrease value in all modes. |
| ◄ / ► buttons |
Manual mode: steer left or right. AUTO mode: set course (increase or decrease 1°). Hold down to increase or decrease 5°. |
| “ENTER” button |
Manual mode: save after changing data. GPS mode: confirm navigation after changing destination. |
| “MENU” button |
Manual mode: press the “MENU” button (see pages 18–19). AUTO mode: change rudder balance, waves, rudder angle ratio and neutral parameters. GPS: change parameters (see details in P15). |
| ON/OFF | Hold down for 3 seconds to shutdown. |
Remote Control — Buttons & Functions
| Button / Item | Function |
|---|---|
| “MENU” button |
Manual mode: enter menu (see details in P16). AUTO mode: change counterclockwise rudder, waves, rudder angle ratio and neutral parameters. GPS: change parameters (see details in P21). |
| “CANCEL” button | Return to previous page in all modes. |
| “ENTER” button |
Manual mode: confirm the settings when you change menu. GPS mode: confirm navigation after changing destination. |
| “∧” button |
Manual mode: enter waypoint management and arrangement of routes.
After pressing the “CANCEL” button, automatically save the current
value and exit. In menu mode, “∧” can increase the value. |
| “∨” button |
Press in manual mode to save the current waypoint. Press “∧” or “∨” to select waypoint storage location 001–020. Decrease value in all modes. |
| ◄ / ► buttons |
Manual mode: steer left or right. AUTO mode: set course (increase or decrease 1°). Hold down to increase or decrease 5°. |
| Mode | Manual mode / Follow-up mode / AUTO mode / GPS mode |
| “DIM” button | Adjust backlight brightness. |
