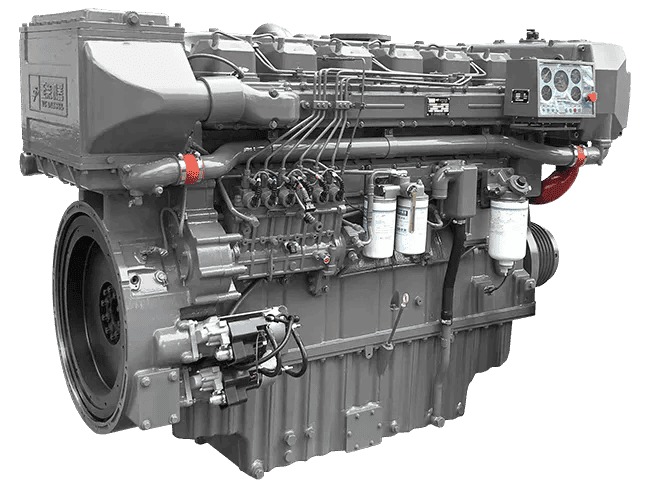

YC6TF Details
YC6TF Series — Product Description
- 1. High economy: Four-valve design increases intake/exhaust flow, improves atomization and combustion, reduces smoke and fuel consumption, and broadens the economic operating range.
- 2. Safety & reliability: High-strength alloy cast-iron block and integral forged-steel crankshaft provide safe operation, reliability and long service life.
- 3. Maintainability: Modular design with wet liners, one-cylinder-one-head and side inspection window for easy installation and maintenance.
- 4. High performance: Efficient turbocharged & intercooled system delivers higher power/torque per liter with strong performance margin across operating conditions.
Technical Specifications
| Model | YC6TF1000L-C20 | YC6TF900L-C20 | YC6TF850L-C20 | YC6TF720L-C20 | YC6TF820L-C20 |
|---|---|---|---|---|---|
| Number of cylinders — bore × stroke (mm) | 6 — 175 × 220 | 6 — 175 × 220 | 6 — 175 × 220 | 6 — 175 × 220 | 6 — 175 × 220 |
| Displacement (L) | 31.75 | 31.75 | 31.75 | 31.75 | 31.75 |
| Number of valves per cylinder | 4 | 4 | 4 | 4 | 4 |
| Induction system | Turbocharged & intercooled | Turbocharged & intercooled | Turbocharged & intercooled | Turbocharged & intercooled | Turbocharged & intercooled |
| Rated power / speed (kW (PS) / r·min⁻¹) |
735 (1000) / 1500 | 660 (900) / 1500 | 625 (850) / 1500 | 530 (720) / 1350 | 603 (820) / 1200 |
| Overload power / speed (kW (PS) / r·min⁻¹) |
808.5 (1100) / 1548 | 726 (990) / 1548 | 687.5 (935) / 1548 | 583 (795) / 1393 | 663.3 (900) / 1238 |
| Min. specific fuel
consumption (g/kW·h) |
≤ 195 | ≤ 195 | ≤ 195 | ≤ 195 | ≤ 195 |
| Certificates | ZC, CCS, EIAPP, China II | ZC, CCS, EIAPP, China II | ZC, CCS, EIAPP, China II | ZC, CCS, EIAPP, China II | ZC, CCS, EIAPP, China II |
| Dimensions (L × W × H) (mm) | 2178 × 1138 × 1865 | 2178 × 1138 × 1865 | 2178 × 1138 × 1865 | 2178 × 1138 × 1865 | 2178 × 1138 × 1865 |
| Dry weight (kg) | 3400 | 3400 | 3400 | 3400 | 3400 |
