YC6TD Details

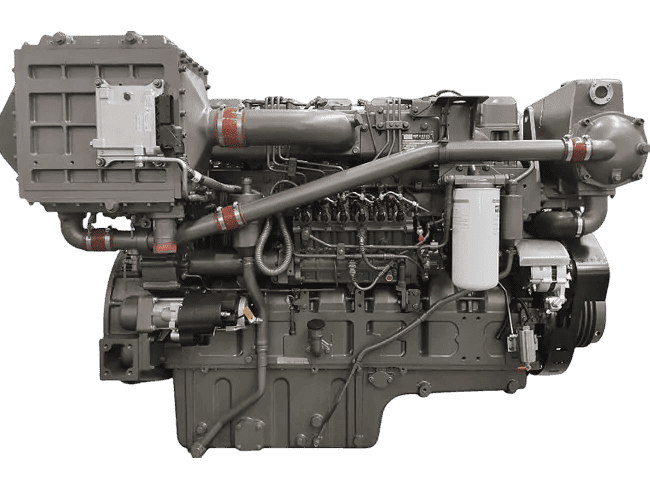

YC6TD Series — Product Description
- 1. Reliability & durability: YC6TD has passed a cumulative durability bench test of 20,000 hours. Alloy cast-iron block and integral forged-steel crankshaft improve fatigue strength and wear resistance. One-cylinder-one-head architecture eases maintenance; evenly stressed head bolts. High camshaft, short & thick push rod and roller tappet enhance reliability.
- 2. Fuel & money saving: Four-valve design and central injector boost breathing and atomization for more complete combustion. Turbocharged & intercooled with electronically controlled pump for precise fueling. Holset/Lianxin turbo delivers wide economic operating range, >15% lower mechanical loss and 10–15% lower fuel consumption vs. same-power engines.
- 3. Safety & comfort: Four-valve layout reduces intake/exhaust noise; rear gear chamber with point-line meshing gears lowers drivetrain mechanical noise.
Technical Specifications
| Model | YC6TD800L-C20 | YC6TD760L-C20 | YC6TD650L-C20 | YC6TD600L-C20 | YC6TD475L-C20 |
|---|---|---|---|---|---|
| Number of cylinders — bore × stroke (mm) | 6 — 152 × 180 | 6 — 152 × 180 | 6 — 152 × 180 | 6 — 152 × 180 | 6 — 152 × 180 |
| Displacement (L) | 19.59 | 19.59 | 19.59 | 19.59 | 19.59 |
| Number of valves per cylinder | 4 | 4 | 4 | 4 | 4 |
| Induction system | Turbocharged & intercooled | Turbocharged & intercooled | Turbocharged & intercooled | Turbocharged & intercooled | Turbocharged & intercooled |
| Rated power / speed (kW (PS) / r·min⁻¹) |
588 (800) / 1800 | 559 (760) / 1800 | 478 (650) / 1800 | 441 (600) / 1500 | 348 (475) / 1800 |
| Overload power / speed (kW (PS) / r·min⁻¹) |
646.8 (880) / 1858 | 614.9 (835) / 1858 | 525.8 (715) / 1858 | 485.1 (660) / 1548 | 382.8 (520) / 1858 |
| Min. specific fuel
consumption (g/kW·h) |
≤ 195 | ≤ 195 | ≤ 195 | ≤ 195 | ≤ 195 |
| Certificates | ZC, CCS, EIAPP, China II | ZC, CCS, EIAPP, China II | ZC, CCS, EIAPP, China II | ZC, CCS, EIAPP, China II | ZC, CCS, EIAPP, China II |
| Dimensions (L × W × H) (mm) | 1986 × 1319 × 1696 | 1986 × 1319 × 1696 | 1986 × 1319 × 1696 | 1986 × 1319 × 1696 | 1986 × 1319 × 1696 |
| Dry weight (kg) | 2200 | 2200 | 2200 | 2200 | 2200 |
