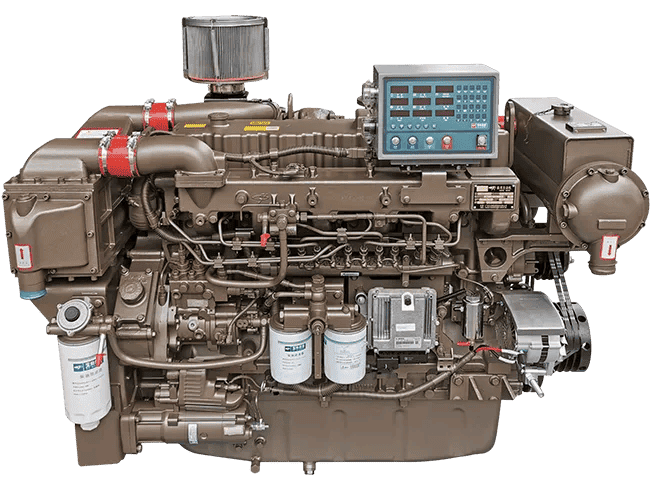

YC6MK Details
YC6MK Series — Product Description
- 1. Reliability & durability: Deep thermal-shock, high-temperature and alpine-cold, and crankshaft-fatigue tests during R&D. European development process; overhaul period > 12,000 hours. Integral crankcase, rear gear chamber and advanced point-line meshing gears deliver lower noise and higher comfort.
- 2. Fuel & cost saving: Independent electronic control enables precise injection, high injection pressure and optimized combustion—stable operation, low combustion noise, strong low-speed torque and quick response. Four-valve design and central injector improve breathing and atomization; proprietary piston-ring and valve-stem-seal tech reduces lube-oil consumption by >50% vs. domestic peers at same power.
- 3. Safety & comfort: Digital local/remote monitoring and integral cast-iron fresh-water cooling jacket exhaust pipe lower engine-room temperature for safer use.
Technical Specifications
| Model | YC6MK410L-C20 | YC6MK320L-C23 | YC6MK300L-C24 |
|---|---|---|---|
| Series / Item | YC6MK series marine diesel engine | ||
| Number of cylinders — bore × stroke (mm) | 6 — 123 × 145 | 6 — 123 × 145 | 6 — 123 × 145 |
| Displacement (L) | 10.338 | 10.338 | 10.338 |
| Number of valves per cylinder | 4 | 4 | 4 |
| Induction system | Turbocharged & intercooled | Turbocharged & intercooled | Turbocharged & intercooled |
| Rated power / speed (kW (PS) / r·min⁻¹) |
300 (410) / 2100 | 235 (320) / 1800 | 220 (300) / 1500 |
| Overload power / speed (kW (PS) / r·min⁻¹) |
330 (450) / 2168 | 258.5 (350) / 1858 | 242 (330) / 1548 |
| Min. specific fuel
consumption (g/kW·h) |
≤ 188 | ≤ 188 | ≤ 188 |
| Certificates | ZC, CCS, EIAPP, China II | ZC, CCS, EIAPP, China II | ZC, CCS, EIAPP, China II |
| Dimensions (L × W × H) (mm) | 1536 × 1021 × 1306 | 1536 × 1021 × 1306 | 1536 × 1021 × 1306 |
| Dry weight (kg) | 1200 | 1200 | 1200 |
