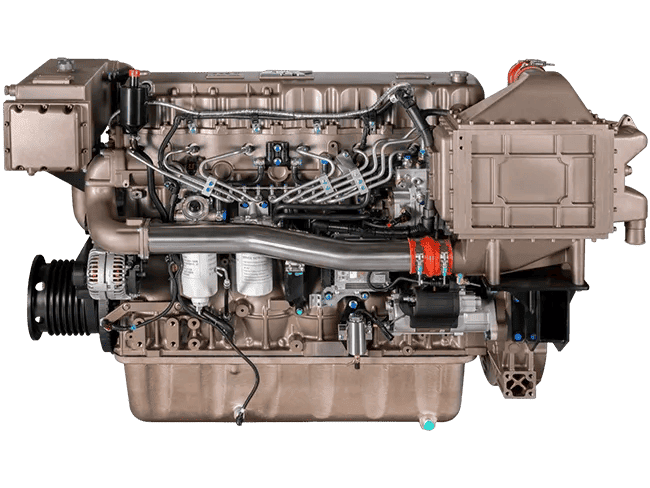

YC6K Details
YC6K Product Description
- 1. High safety: Electronically controlled self-diagnostic protection and fault-operation protection. Fully electronic control architecture; customizable to application needs.
- 2. Energy saving & environmental friendliness: Fuel consumption is more than 10% lower than traditional engines. Full electronic-control technology enables compliance with IMO II emission standards or above.
- 3. High reliability: Engine overhaul interval up to 30,000 hours.
- 4. Lightweight & compact structure: Weight and dimensions are aligned with well-known international brands, ensuring high interchangeability.
Technical Specifications
| Model | YC6K560L-C20 | YC6K520L-C20 | YC6K490L-C20 | YC6K450L-C20 |
|---|---|---|---|---|
| Number of cylinders — bore × stroke (mm) | 6 — 129 × 165 | 6 — 129 × 165 | 6 — 129 × 165 | 6 — 129 × 165 |
| Displacement (L) | 12.94 | 12.94 | 12.94 | 12.94 |
| Number of valves per cylinder | 4 | 4 | 4 | 4 |
| Induction system | Turbocharged & intercooled | Turbocharged & intercooled | Turbocharged & intercooled | Turbocharged & intercooled |
| Rated power / speed (kW (PS) / r·min−1) |
412 (560) / 1800 | 382 (520) / 1800 | 360 (490) / 1500 | 331 (450) / 1500 |
| Overload power / speed (kW (PS) / r·min−1) |
453 (616) / 1858 | 420 (571) / 1858 | 396 (531) / 1548 | 364 (495) / 1548 |
| Min. specific fuel
consumption (g/kW·h) |
≤ 186 | ≤ 186 | ≤ 186 | ≤ 186 |
| Certificates | CCS, EIAPP, China II | CCS, EIAPP, China II | CCS, EIAPP, China II | CCS, EIAPP, China II |
| Dimensions (L × W × H) (mm) | 1815 × 1040 × 1250 | 1815 × 1040 × 1250 | 1815 × 1040 × 1250 | 1815 × 1040 × 1250 |
| Dry weight (kg) | 1300 | 1300 | 1300 | 1300 |
