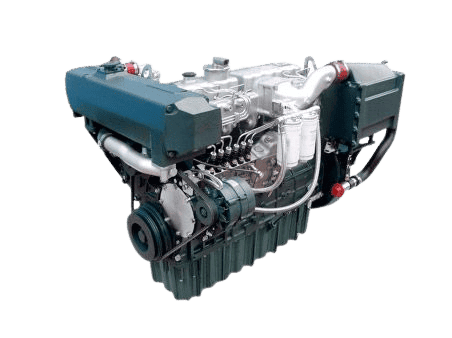

YC6A Details
YC6A Product Description
- 1. High comfortability: Integral cast-iron fresh-water cooling jacket exhaust pipe lowers cabin temperature and improves safety.
- 2. Efficient combustion: HPCR system delivers strong power and quick response.
- 3. High reliability: Alloy cast-iron block & cylinder head; integral crankshaft with sliding bearings for high reliability, compact size and low weight; overhaul period > 10,000 hours.
Technical Specifications
| Model | YC6A125L-C20 | YC6A190L-C20 | YC6A200L-C22 | YC6A260L-C23 | YC6A280L-C22 |
|---|---|---|---|---|---|
| Cylinder quantity — bore × stroke (mm) | 6 — 108 × 132 | 6 — 108 × 132 | 6 — 108 × 132 | 6 — 108 × 132 | 6 — 108 × 132 |
| Displacement (L) | 7.252 | 7.252 | 7.252 | 7.252 | 7.252 |
| Number of valves per cylinder | 2 | 2 | 2 | 2 | 2 |
| Induction system | Turbocharged & intercooled | Turbocharged & intercooled | Turbocharged & intercooled | Turbocharged & intercooled | Turbocharged & intercooled |
| Rated power / speed (kW (PS) / r·min⁻¹) |
90 (125) / 1500 | 140 (190) / 1800 | 145 (200) / 1500 | 191 (260) / 2300 | 206 (280) / 2500 |
| Overload power / speed (kW (PS) / r·min⁻¹) |
99 (135) / 1548 | 154 (210) / 1858 | 159.5 (220) / 1548 | 210 (285) / 2374 | 227 (310) / 2580 |
| Min. specific fuel
consumption (g/kW·h) |
≤ 198 | ≤ 198 | ≤ 198 | ≤ 198 | ≤ 198 |
| Certificates | ZC, CCS, China II | ZC, CCS, China II | ZC, CCS, EIAPP, China II | ZC, CCS, EIAPP, China II | ZC, CCS, EIAPP, China II |
| Dimensions (L × W × H) (mm) | 1433 × 899 × 976 | 1433 × 899 × 976 | 1433 × 899 × 976 | 1433 × 899 × 976 | 1433 × 899 × 976 |
| Dry weight (kg) | 780 | 780 | 780 | 780 | 780 |
