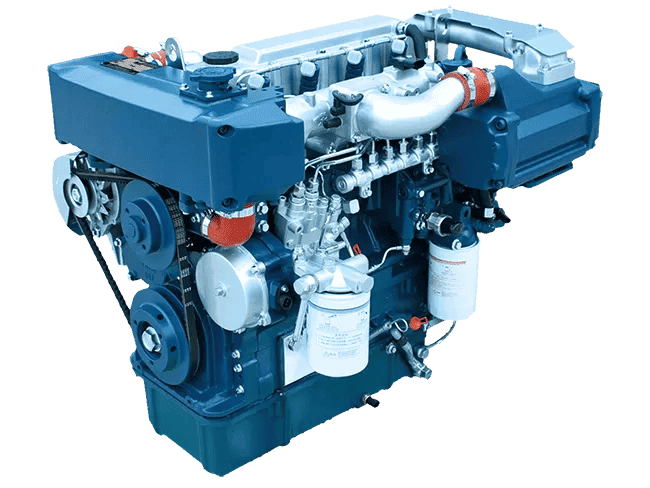

YC4FA Details
YC4FA Product Description
- 1. High reliability: Water-cooled exhaust pipes for safer and more comfortable operation.
- 2. Low noise: Dual balance-shaft design minimizes vibration and noise.
- 3. Optimal structure: Compact layout — small size and light weight.
- 4. High-pressure common rail: HPCR system delivers strong power and quick response.
Technical Specifications
| Model | YC4FA150L-C20 | YC4FA130L-C20 | YC4FA115L-C20 | YC4FA100L-C20 | YC4FA100L-C23 |
|---|---|---|---|---|---|
| Number of cylinders — bore × stroke (mm) | 4 — 96 × 103 | 4 — 96 × 103 | 4 — 96 × 103 | 4 — 96 × 103 | 4 — 96 × 103 |
| Displacement (L) | 2.98 | 2.98 | 2.98 | 2.98 | 2.98 |
| Number of valves per cylinder | 2 | 2 | 2 | 2 | 2 |
| Induction system | Turbocharged & intercooled | Turbocharged & intercooled | Turbocharged & intercooled | Turbocharged & intercooled | Turbocharged & intercooled |
| Rated power / speed (kW (PS) / r·min⁻¹) |
110 (150) / 3100 | 95 (130) / 3100 | 85 (115) / 3100 | 73 (100) / 2100 | 73 (100) / 2950 |
| Overload power / speed (kW (PS) / r·min⁻¹) |
121 (165) / 3200 | 104.5 (142) / 3200 | 93.5 (127) / 3200 | 80.3 (110) / 2168 | 80.3 (110) / 3045 |
| Min. specific fuel
consumption (g/kW·h) |
≤ 201 | ≤ 201 | ≤ 201 | ≤ 201 | ≤ 201 |
| Certificates | CCS, EIAPP, China II | CCS, EIAPP, China II | CCS, EIAPP, China II | CCS, EIAPP, China II | CCS, EIAPP, China II |
| Dimensions (L × W × H) (mm) | 828 × 663 × 724 | 828 × 663 × 724 | 828 × 663 × 724 | 828 × 663 × 724 | 828 × 663 × 724 |
| Dry weight (kg) | 380 | 380 | 380 | 380 | 380 |
