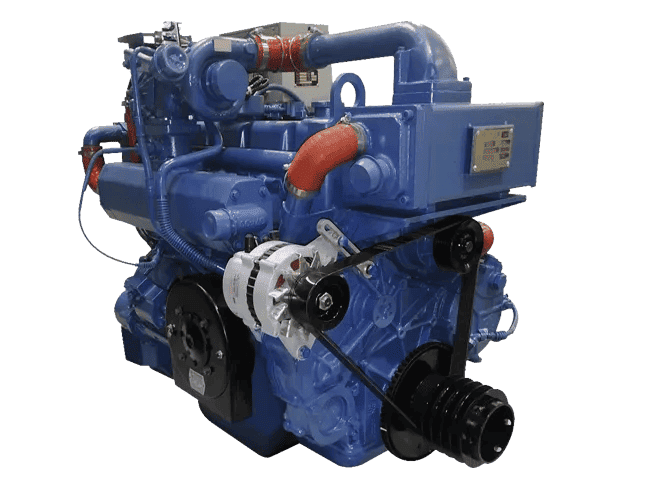

Yuchai YC4DN marine engine — OBKA Group

YC4D Gas G-drive — Product Description

  • 1. High reliability: Block, crankshaft, connecting rod, bearing bush and gear train are the same architecture as diesel engines for proven durability. In addition, gas-engine combustion/explosion pressure is 20–30% lower than diesel, providing a large reliability margin.
  • 2. High efficiency & environmental friendliness: Lower carbon emissions versus diesel at the same power; almost zero PM and sulfide emissions. HC, CO and NOx meet China II marine emission regulations.
  • 3. Complete safety design: Crankcase explosion-proof valve keeps crankcase pressure in a safe range. Exhaust temperature monitoring protects the engine. Water-cooled exhaust pipe reduces thermal radiation and compartment temperature for easier accessibility.
  • 4. Advanced combustion control: Turbocharged & intercooled lean-burn with electronic turbo control for accurate boost and quick response. Closed-loop oxygen-sensor A/F control for consistent performance. High-energy ignition for faster combustion and better economy.

Technical Specifications

Model YC4D80NL-C21 YC4D70NL-C21 YC4D55NL-C21
Category Marine G-drive auxiliary engine Marine G-drive auxiliary engine Marine G-drive auxiliary engine
Type Vertical, in-line, water-cooled, four-stroke Vertical, in-line, water-cooled, four-stroke Vertical, in-line, water-cooled, four-stroke
Induction system Turbocharged & intercooled Turbocharged & intercooled Turbocharged & intercooled
Number of cylinders — bore × stroke (mm) 4 — 108 × 115 4 — 108 × 115 4 — 108 × 115
Displacement (L) 4.21 4.21 4.21
Rated power (kW) 57 50 40
Rated speed (r/min) 1500 1500 1500
Overload power (kW) 62.7 55 44
Overload speed (r/min) 1500 1500 1500
Average piston speed (m/s) 5.75 5.75 5.75
Mean effective pressure (MPa) 1.08 0.95 0.76
Firing order 1—3—4—2 1—3—4—2 1—3—4—2
Rotation Anticlockwise (facing power-output end) Anticlockwise (facing power-output end) Anticlockwise (facing power-output end)
Starting mode Electric start Electric start Electric start
Fuel NG NG NG
Oil capacity (L) 12 12 12
Steady-state speed regulation (%) ≤ 5 ≤ 5 ≤ 5
Instantaneous speed regulation (%) ≤ 15 ≤ 15 ≤ 15
Emission China II marine engines China II marine engines China II marine engines
Dimensions (L × W × H) (mm) 1040 × 790 × 1155 1040 × 790 × 1155 1040 × 790 × 1155
Dry weight (kg) 520 520 520
