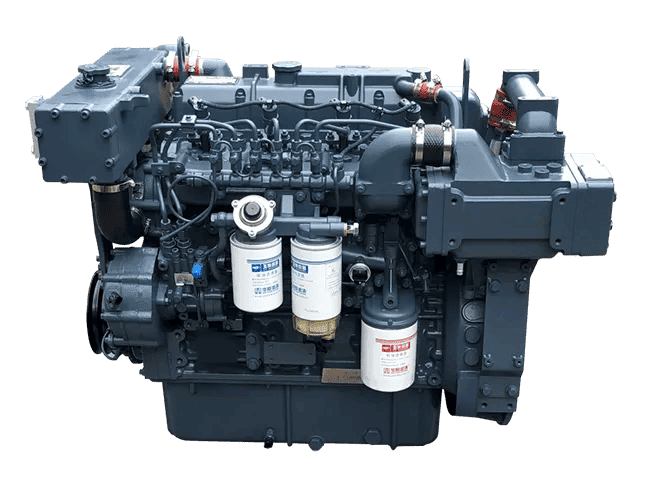

YC4D Details
YC4D Products Description
- 1. High comfortability: Water-cooled exhaust pipe + wet post-turbo pipe + high-efficiency heat exchanger and intercooler provide excellent heat dissipation; efficient combustion delivers low fuel consumption and leading NVH performance.
- 2. High adaptability: Wide power range with high torque reserve for various commercial and leisure applications.
- 3. Safety & reliability: Reinforced engine design with overhaul period over 10,000 hours.
- 4. High economy: Bosch high-pressure common-rail enables precise control and lower fuel consumption.
Technical Specifications
| Model | YC4D190L-C20 | YC4D125L-C22 | YC4D105L-C22 | YC4D90L-C22 |
|---|---|---|---|---|
| Number of cylinders – bore × stroke (mm) | 4 — 108 × 115 | 4 — 108 × 115 | 4 — 108 × 115 | 4 — 108 × 115 |
| Displacement (L) | 4.214 | 4.214 | 4.214 | 4.214 |
| Number of valves per cylinder | 2 | 2 | 2 | 2 |
| Induction system | Turbocharged | Turbocharged | Turbocharged | Turbocharged |
| Rated power / speed (kW (PS) / r·min⁻¹) |
127 (170) / 3000 | 90 (125) / 1500 | 74 (105) / 1500 | 65 (90) / 1500 |
| Overload power / speed (kW (PS) / r·min⁻¹) |
139.7 (190) / 3096 | 99 (140) / 1500 | 81.4 (115) / 1500 | 71.5 (100) / 1500 |
| Min. specific fuel
consumption (g/kW·h) |
≤ 220 | ≤ 220 | ≤ 220 | ≤ 220 |
| Certificates | CCS, China II | CCS, China II | CCS, China II | CCS, China II |
| Dimensions (L × W × H) (mm) | 1123 × 740 × 854 | 1123 × 740 × 854 | 1123 × 740 × 854 | 1123 × 740 × 854 |
| Dry weight (kg) | 490 | 490 | 490 | 490 |
