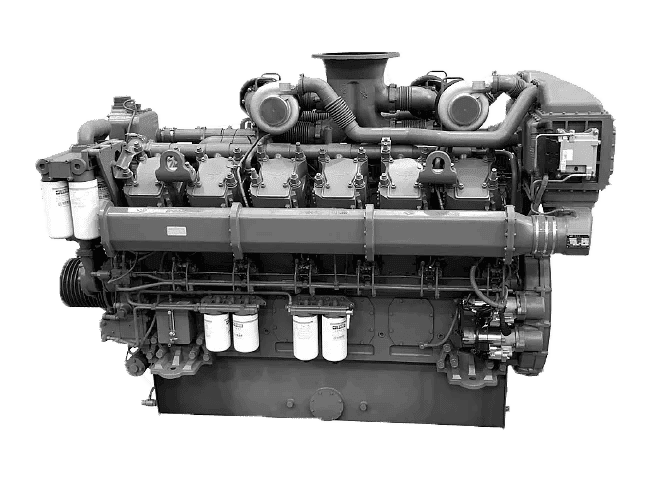

YC12VC Details
YC12VC Series — Product Description
- 1. Energy-saving & eco-friendly: Electronically-controlled unit pump with high-efficiency, energy-saving design; high/low-temp water cooling, turbocharged & intercooled, four-valve technology — compliant with IMO Tier II for both efficiency and environmental performance.
- 2. Compact structure: Small size and light weight for easy installation/maintenance; integrated injection & valve cam on the camshaft keeps the structure compact.
- 3. High reliability: High-strength cylinder block, forged alloy-steel crankshaft and alloy-steel connecting rod reduce bearing impact loads for durability and reliability.
- 4. Strong loading capacity: E-controlled unit pump and pioneering four-supercharger parallel technology provide excellent transient speed regulation and loading capability.
- 5. Maintainability: Dual-side intake piping, one-cylinder-one-head, mature cylinder-head technology, patented turning gear, and side inspection window — all simplifying maintenance.
Technical Specifications
| Model | YC12VC2200L-C20 | YC12VC2000L-C20 |
|---|---|---|
| Cylinder quantity — bore × stroke (mm) | 12 — 200 × 210 | 12 — 200 × 210 |
| Displacement (L) | 79.17 | 79.17 |
| Number of valves per cylinder | 4 | 4 |
| Induction system | Turbocharged & intercooled | Turbocharged & intercooled |
| Rated power / speed (kW (PS) / r·min⁻¹) |
1618 (2200) / 1500 | 1470 (2000) / 1500 |
| Overload power / speed (kW (PS) / r·min⁻¹) |
1779.8 (2450) / 1548 | 1617 (2200) / 1548 |
| Min. specific fuel
consumption (g/kW·h) |
≤ 195 | ≤ 195 |
| Certificates | ZC, CCS, EIAPP, China II | ZC, CCS, EIAPP, China II |
| Dimensions (L × W × H) (mm) | 3067 × 1792 × 2524 | 3067 × 1792 × 2524 |
| Dry weight (kg) | 8380 | 8380 |
