W-Series Details

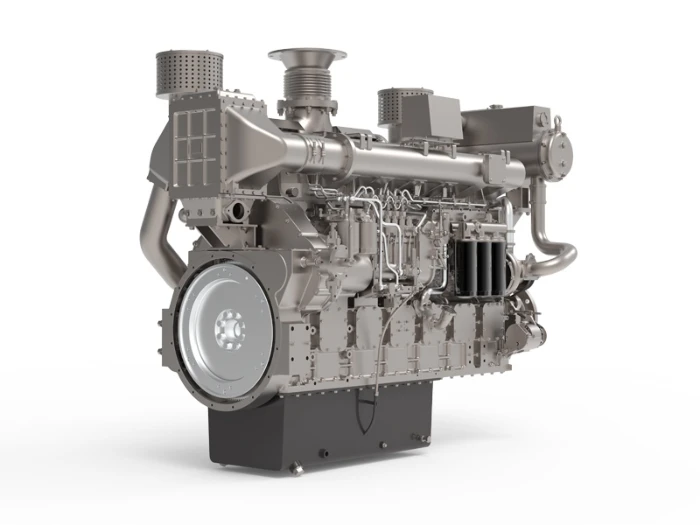

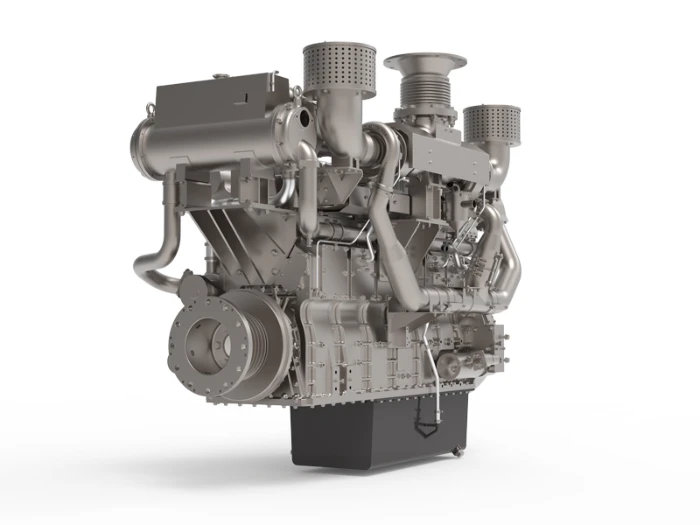

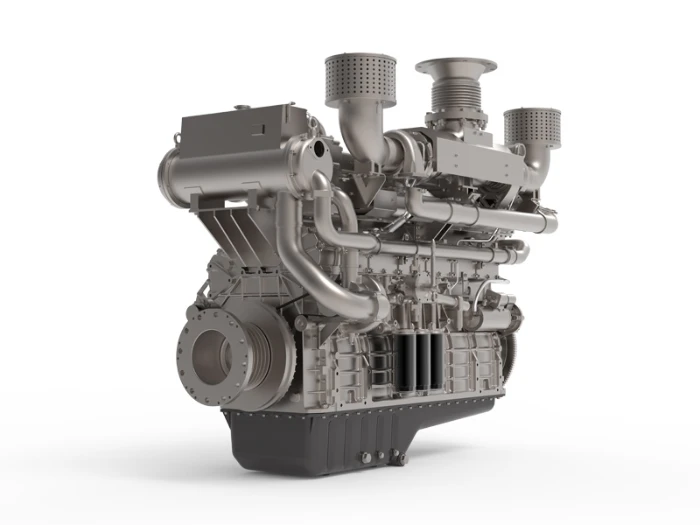

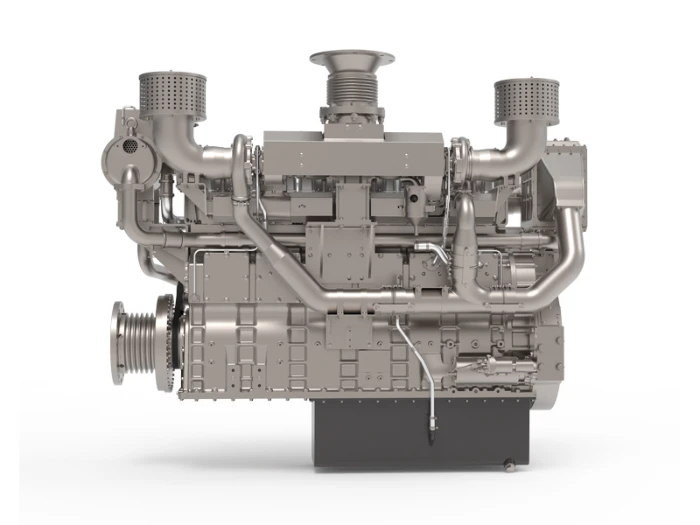

W Series Marine Diesel Engine
Technical Specifications
| Model | SC33W | SC38W |
|---|---|---|
| Type | Inline, Water-Cooled, 4-Stroke, Wet Cylinder Liner | |
| Bore × Stroke (mm) | 180 × 215 | 180 × 250 |
| Min. specific fuel
consumption (g/kW·h) |
190 | |
| Starting method | Air start, Electric start, Air/Electric start | |
| Firing order | 1-5-3-6-2-4 | |
| Noise level | ≤110 dB(A) | |
| Crank rotation (facing flywheel) | Counterclockwise | |
| Cylinders | 6 | |
| Displacement (L) | 32.8 | 38.2 |
| Oil consumption (g/kW·h) |
0.5 | |
| Certificates | CCS / IMO II | |
| Flywheel & housing | SAE 0# & 18# | |
| Overhaul interval | 20,000 hours | |
| Net weight (kg) | 3800 | 4200 |
| Dimensions (L × W × H) (mm) | 2453 × 1271 × 1950 | 2487 × 1196 × 1946 |
- 1. High-efficiency combustion: 4-valve cylinder head, P11 high-quality fuel pump, and twin turbochargers ensure greater airflow and complete combustion. Minimum specific fuel consumption is 193 g/kW·h and oil consumption is 0.3 g/kW·h, reducing operating cost.
- 2. Rigid & compact structure: WithPortal-type cylinder block and rear cover deliver compact design, high rigidity, and smooth operation. Strictly inspected and approved under MHI standards. Compared to peers, power is improved by 17% and torque reserve exceeds 4500 N·m.
- 3. Flexible configurations: Equipped with dual-layer high-pressure fuel pipes, optional single or dual flywheel housings, and fuel pump available in electric or manual adjustment, enabling wide adaptability across applications.
- 4. Simple design & easy maintenance: One-cylinder, one-head construction with straightforward appearance makes the engine reliable and easy to service.
Technical Parameters
| Model | Type | Displacement (L) | Rated Power (kW) | Rated Power (HP) | Speed (rpm) | Aspiration | Fuel Control System | Interface Output | Weight (kg) | Certificates | Emission |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SC33W680CA2 | 6 Cylinder / Inline | 32.8 | 490 | 666 | 1350 | TA | Mechanical | SAE 0# / 18' | 3400 | CCS | IMO TIER II |
| SC33W765CA2 | 6 Cylinder / Inline | 32.8 | 561 | 763 | 1500 | TA | Mechanical | CCS | IMO TIER II | ||
| SC33W825.1CA2 | 6 Cylinder / Inline | 32.8 | 588 | 800 | 1350 | TA | Mechanical | CCS | IMO TIER II | ||
| SC33W825CA2 | 6 Cylinder / Inline | 32.8 | 595 | 810 | 1500 | TA | Mechanical | CCS | IMO TIER II | ||
| SC33W880.1CA2 | 6 Cylinder / Inline | 32.8 | 640 | 870 | 1350 | TA | Mechanical | CCS | IMO TIER II | ||
| SC33W880CA2 | 6 Cylinder / Inline | 32.8 | 640 | 870 | 1500 | TA | Mechanical | CCS | IMO TIER II | ||
| SC33W950CA2 | 6 Cylinder / Inline | 32.8 | 690 | 938 | 1500 | TA | Mechanical | / | / | ||
| SC33W1000CA2 | 6 Cylinder / Inline | 32.8 | 725 | 986 | 1500 | TA | Mechanical | / | / | ||
| SC33W1100CA2 | 6 Cylinder / Inline | 32.8 | 792 | 1077 | 1500 | TA | Mechanical | / | / | ||
| SC38W880.12CA1 | 6 Cylinder / Inline | 38.2 | 637 | 866 | 1200 | TA | EUP | SAE 0# / 18' | 4200 | CCS | IMO TIER II |
| SC38W950.12CA1 | 6 Cylinder / Inline | 38.2 | 686 | 933 | 1200 | TA | EUP | CCS | IMO TIER II | ||
| SC38W1000.12CA1 | 6 Cylinder / Inline | 38.2 | 720 | 979 | 1200 | TA | EUP | CCS | IMO TIER II |
