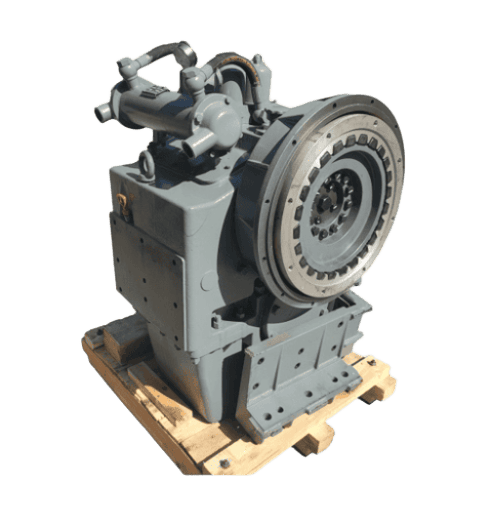

HCD400A Details
HCD400A Product Description
Technical Specifications
| Medium/Heavy Duty Gearbox | |
|---|---|
| Reference number | A-HCD400A-5,89 |
| Brand | Advance |
| Model | HCD400A |
| Ratio | 5,89:1 |
| Power | 666 HP @ 1800 RPM |
| Max. Power | 666 HP @ 1800 RPM |
| RPM Range | 1000-1800 |
| Rated propeller thrust | 82 KN |
| N/n | 0,37 HP/RPM |
| Features & Options | |
|---|---|
| Sae housing | Without/SAE-0/SAE-1 |
| Controls | Mechanical/ Electrical |
| Pto | Available |
| Coupling size | 18 / 16 / 14 inch |
| Coupling type | Rubber block drive, with alu. ring / (High) flexible coupling |
| Dimensions | |
|---|---|
| Vertical offset | 355 mm |
| LxWxH | 843 × 1010 × 1066 mm |
| Net. weight | 1100 kg |
| Available Arrangements | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Ratio | 3,96:1 | 4,7:1 | 4,33:1 | 4,43:1 | 4,476:1 | 5,7:1 | 5,53:1 | 5,89:1 | 5:1 |
| Rate | 0,45 HP/RPM | 0,40 HP/RPM | 0,37 HP/RPM | — | — | — | — | — | — |
