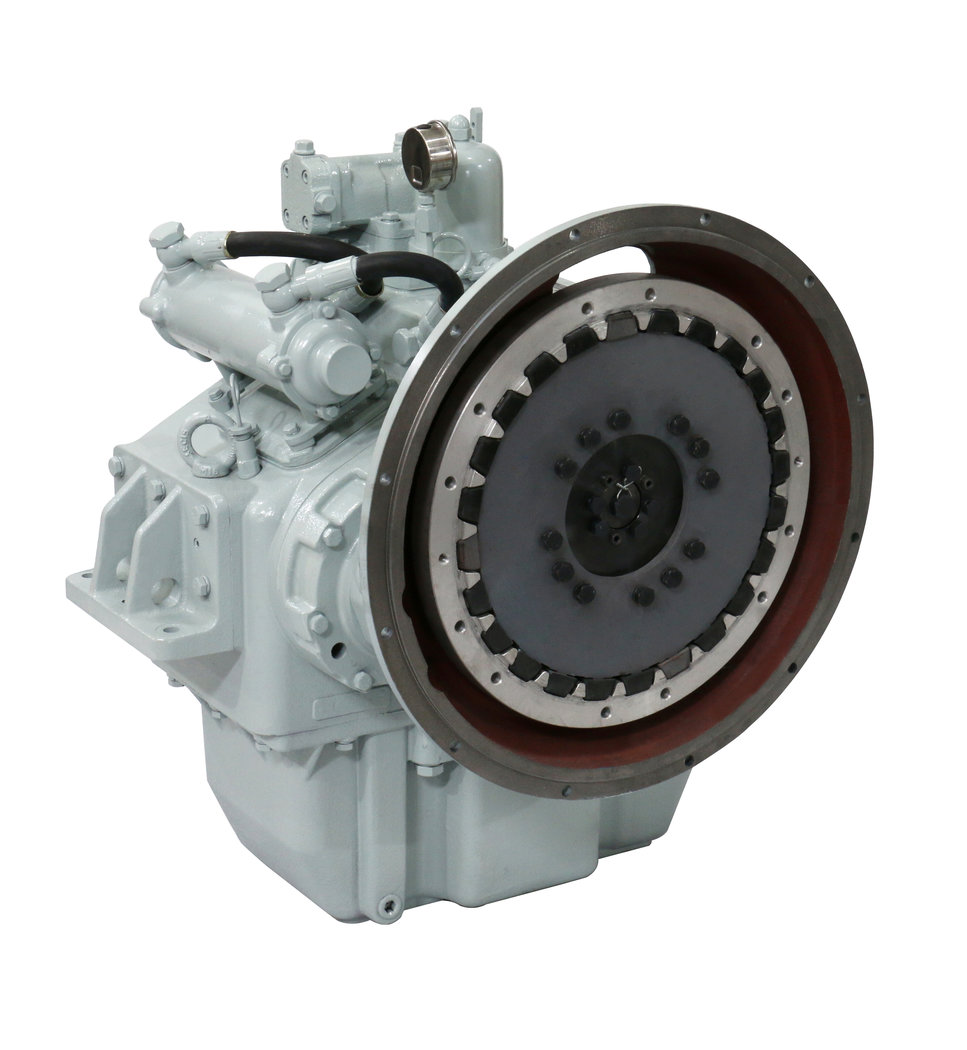

Advance HC300
Advance HC300 — 3:1
Medium/heavy duty marine gearbox. For availability and configuration in Türkiye, contact OBKA Group.
| Technical Specifications | |
|---|---|
| Reference number | A-HC300-3 |
| Brand | Advance |
| Model | HC300 |
| Ratio | 3:1 |
| Power | 630 HP @ 1800 RPM |
| Max. power | 875 HP @ 2500 RPM |
| RPM range | 750–2500 |
| Rated propeller thrust | 50 kN |
| SAE housing | Without / SAE-0 / SAE-1 |
| Controls | Mechanical / electrical |
| PTO | Not available |
| Coupling size | 18 / 16 / 14 inch |
| Vertical offset | 264 mm |
| Dimensions (L×W×H) | 798×930×918 mm |
| Net weight | 700 kg |
