G-Series Details

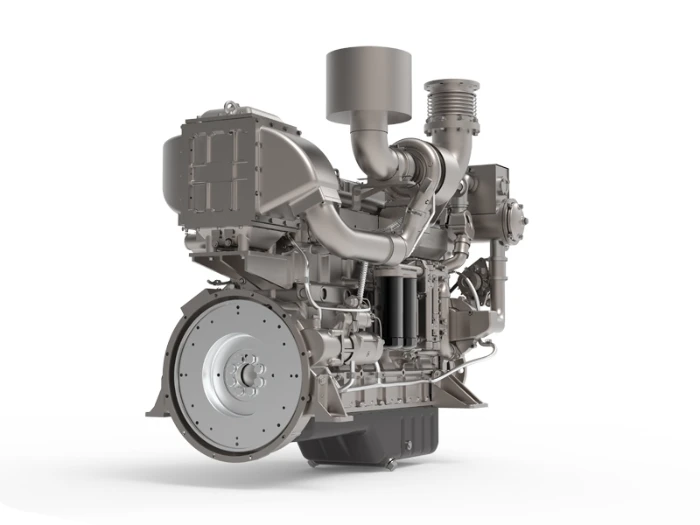

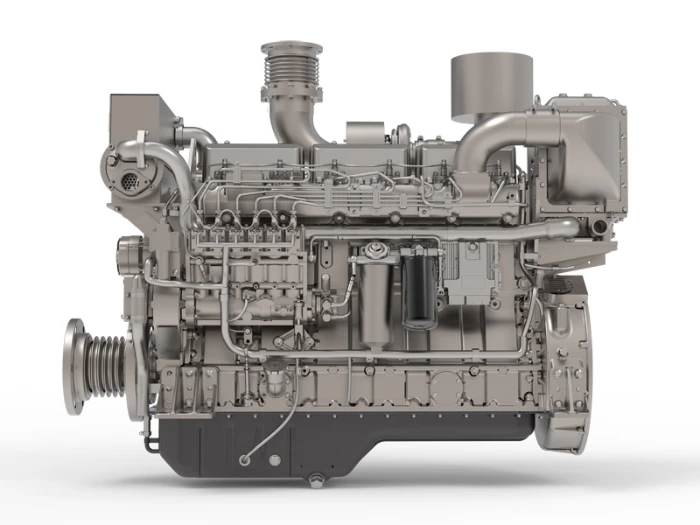

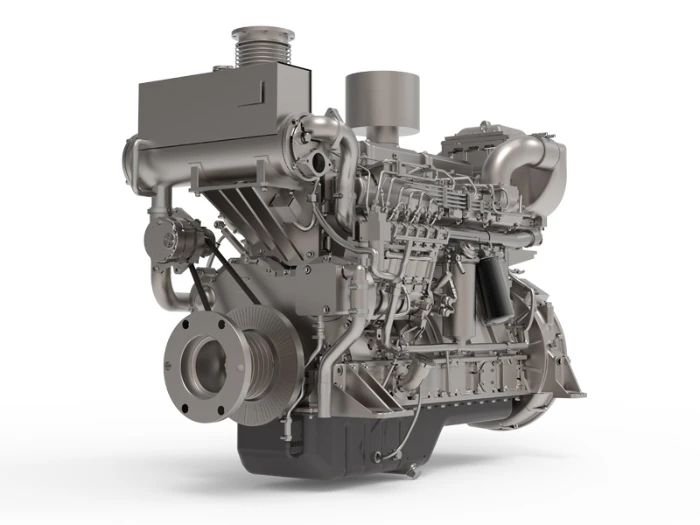

G-Series Marine Disel Engine
- 1. Enhanced structural design: Through FEA model analysis and bonding strength calculations, improvements such as reinforced body design and integrated cylinder head installation have been achieved.
- 2. High durability: Forged and tempered steel crankshaft without quenching increases fatigue resistance and service life.
- 3. Optimized combustion system: After CFD analysis, a high-flow cooling pump, fuel pump, and high-efficiency turbocharger were added, achieving a minimum fuel consumption of 195 g/kW·h and maximum torque reserve of 2300 N·m.
- 4. Improved auxiliary components: Flanged fuel injection pump, new fuel-gas separator, optimized thermostat and fuel pipeline, integrated heat exchanger with expansion tank, and advanced sealing gaskets enhance quality and appearance.
- 5. Reliability & maintenance: Features include a fracture-split connecting rod and efficient water–air intercooler. High compatibility of spare parts with previous generation reduces operating cost and simplifies maintenance.
Technical Specifications
| Model | G128 / SC15G |
|---|---|
| Type | Inline, Water-Cooled, 4-Stroke, Wet Cylinder Liner |
| Bore × Stroke (mm) | 135 × 150 / 135 × 165 |
| Minimum Fuel Consumption (g/kW·h) |
195 |
| Starting Method | Electric Start |
| Firing Order | 1-5-3-6-2-4 |
| Noise Level | ≤108 dB (A) |
| Crankshaft Rotation (facing flywheel) | Counterclockwise |
| Number of Cylinders | 6 |
| Displacement (L) | 12.8 / 14.2 |
| Oil Consumption (g/kW·h) |
0.5 |
| Certificates | CCS / IMO II |
| Flywheel & Housing | SAE 1# & 14# |
| Overhaul Interval | 20,000 hours |
| Dimensions (L × W × H) (mm) | 1680 × 884 × 1496 |
| Net Weight (kg) | 1350 |
Technical Parameters
| Model | Type | Displacement (L) | Rated Power (kW) | Rated Power (HP) | Speed (rpm) | Aspiration | Fuel Control System | Interface Output | Weight (kg) | Certificates | Emission |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G128ZLCa | 6 Cylinder / Inline | 12.8 | 180 | 244 | 1500 | TA | Mechanical | SAE 1# / 14' | 1315 | CCS | IMO TIER II |
| G128ZLCa3 | 6 Cylinder / Inline | 12.8 | 180 | 244 | 1800 | TA | Mechanical | 1315 | CCS | IMO TIER II | |
| G128ZLCa1 | 6 Cylinder / Inline | 12.8 | 193 | 263 | 1500 | TA | Mechanical | 1315 | CCS | IMO TIER II | |
| G128ZLCa2 | 6 Cylinder / Inline | 12.8 | 236 | 320 | 1500 | TA | Mechanical | 1315 | CCS | IMO TIER II | |
| G128ZLCa12 | 6 Cylinder / Inline | 12.8 | 227 | 308 | 1800 | TA | Mechanical | 1315 | CCS | IMO TIER II | |
| G128ZLCa5 | 6 Cylinder / Inline | 12.8 | 254.9 | 346 | 1500 | TA | Mechanical | 1315 | CCS | IMO TIER II | |
| G128ZLCa15 | 6 Cylinder / Inline | 12.8 | 254.9 | 346 | 1800 | TA | Mechanical | 1315 | CCS | IMO TIER II | |
| SC15G420CA2 | 6 Cylinder / Inline | 14.2 | 272 | 370 | 1500 | TA | Mechanical | 1350 | CCS | IMO TIER II | |
| SC15G460CA2 | 6 Cylinder / Inline | 14.2 | 300 | 408 | 1500 | TA | Mechanical | 1350 | CCS | IMO TIER II | |
| SC15G500CA2 | 6 Cylinder / Inline | 14.2 | 320 | 435 | 1500 | TA | Mechanical | 1350 | CCS | IMO TIER II | |
| SC15G500.1CA2 | 6 Cylinder / Inline | 14.2 | 320 | 435 | 1800 | TA | Mechanical | 1350 | CCS | IMO TIER II | |
| SC15G500.18CA1 | 6 Cylinder / Inline | 14.2 | 361 | 490 | 1800 | TA | EUP | 1350 | CCS | IMO TIER II |
