E-Series Details

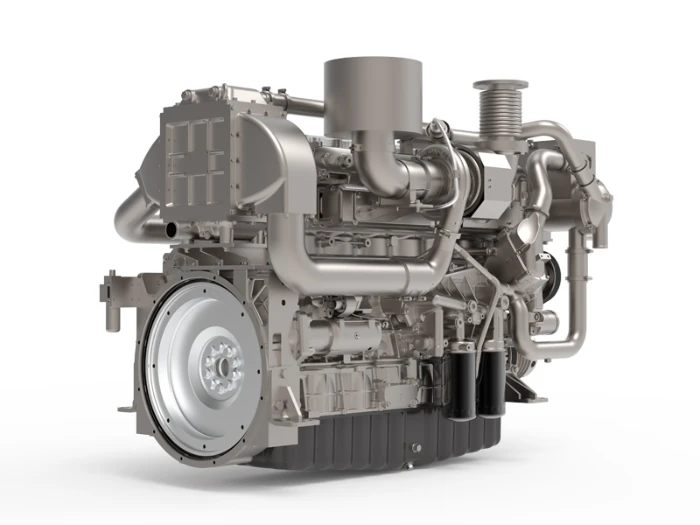

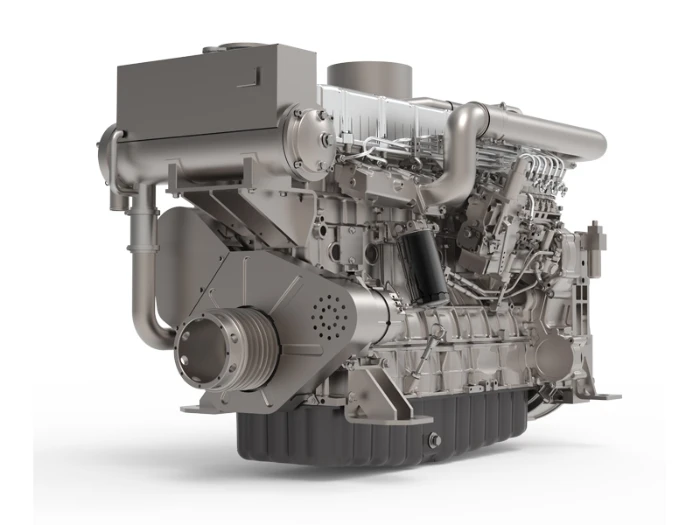

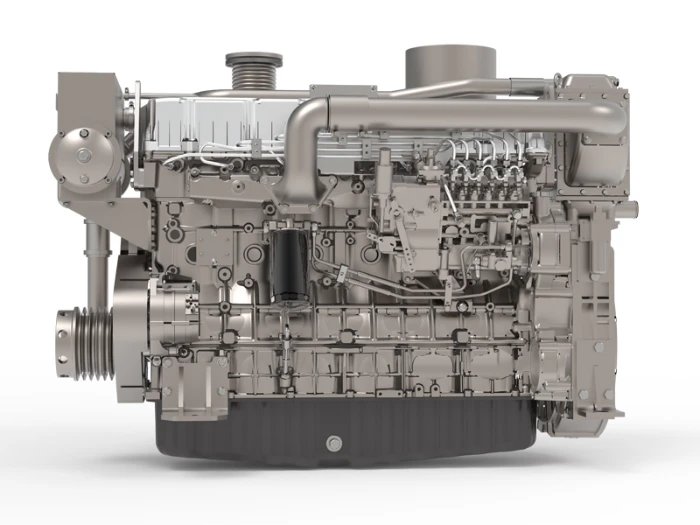

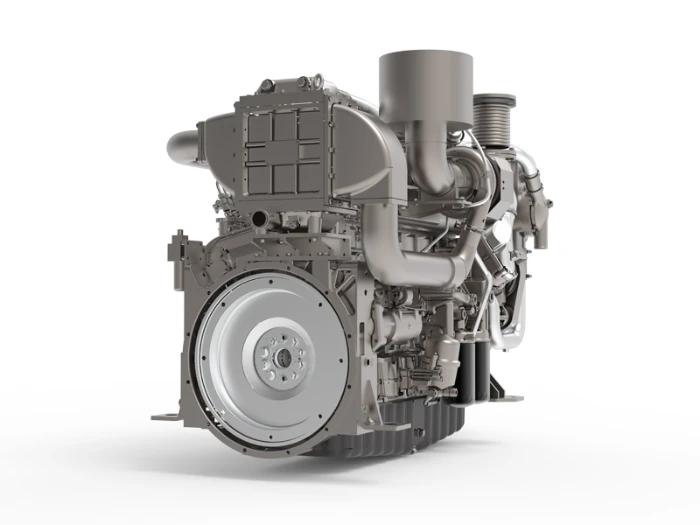

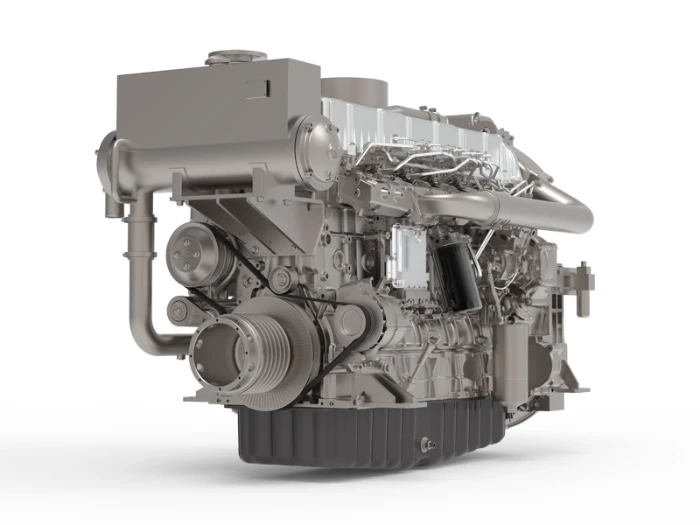

E Series Marine Diesel Engine
Technical Specifications
| Model | SC12E | SC13E |
|---|---|---|
| Type | Inline, Water-Cooled, 4-Stroke, Wet Cylinder Liner | |
| Bore × Stroke (mm) | 128 × 153 | 130 × 161 |
| Min. specific fuel
consumption (g/kW·h) |
185 | |
| Starting method | Electric start | |
| Firing order | 1-5-3-6-2-4 | |
| Noise level | ≤100 dB(A) | |
| Crank rotation (facing flywheel) | Counterclockwise | |
| Cylinders | 6 | |
| Displacement (L) | 11.8 | 12.8 |
| Oil consumption (g/kW·h) |
0.3 | |
| Certificates | CCS / IMO II | |
| Flywheel & housing | SAE 1# / 14# | |
| Overhaul interval | 20,000 hours | |
| Dimensions (L × W × H) (mm) | 1698 × 860 × 1227 | 1738 × 896 × 1213 |
| Net weight (kg) | 1350 | |
Features
- 1. Robust high-pressure design: Designed for maximum explosion pressure of 190 bar, featuring four valves per cylinder, overhead camshaft, high-strength block with bearing plates, and rear gear train layout.
- 2. High product quality & consistency: Ensured by MAG’s automated production lines with MES control and Volkswagen’s engine quality management system.
- 3. Long service life: Mechanical parts service life (B10) exceeds 15,000 hours. Test-bench reliability surpasses 20,000 hours, while customer verification exceeds 10,000 hours, demonstrating high durability.
- 4. Easy maintenance: Single overhead camshaft with roller rocker arms doubles valve adjustment intervals. Centrifugal oil filtration and multi-stage oil/fuel filtration extend filter replacement intervals up to 500 hours.
- 5. Strong environmental adaptability: Operates reliably at 50 °C ambient temperature. Cold start temperature reaches −15 °C without intake heater. Equipped with water-cooled exhaust pipe, double-walled fuel pipes, and leakage alarm system for higher safety.
Technical Parameters
| Model | Type | Displacement (L) | Rated Power (kW) | Rated Power (HP) | Speed (rpm) | Aspiration | Fuel Control System | Interface Output | Weight (kg) | Certificates | Emission |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SC12E360.18CA1 | 6 Cylinder / Inline | 11.8 | 260 | 353 | 1500 | TA | Mechanical | SAE 1# / 14' | 1308 | CCS | IMO TIER II |
| SC12E360.21CA1 | 6 Cylinder / Inline | 11.8 | 260 | 353 | 2100 | TA | Mechanical | CCS | IMO TIER II | ||
| SC12E400.18CA1 | 6 Cylinder / Inline | 11.8 | 288 | 392 | 1800 | TA | Mechanical | CCS | IMO TIER II | ||
| SC12E400.21CA1 | 6 Cylinder / Inline | 11.8 | 288 | 392 | 2100 | TA | Mechanical | CCS | IMO TIER II | ||
| SC12E420.18CA1 | 6 Cylinder / Inline | 11.8 | 308 | 419 | 1800 | TA | Mechanical | CCS | IMO TIER II | ||
| SC12E420.21CA1 | 6 Cylinder / Inline | 11.8 | 308 | 419 | 2100 | TA | Mechanical | CCS | IMO TIER II | ||
| SC12E460.21CA1 | 6 Cylinder / Inline | 11.8 | 334 | 454 | 2100 | TA | Mechanical | CCS | IMO TIER II | ||
| SC13E500.18CA2 | 6 Cylinder / Inline | 12.8 | 361 | 490 | 1800 | TA | ECU + CR | / | / | ||
| SC13E560.18CA2 | 6 Cylinder / Inline | 12.8 | 418 | 560 | 1800 | TA | ECU | / | / |
