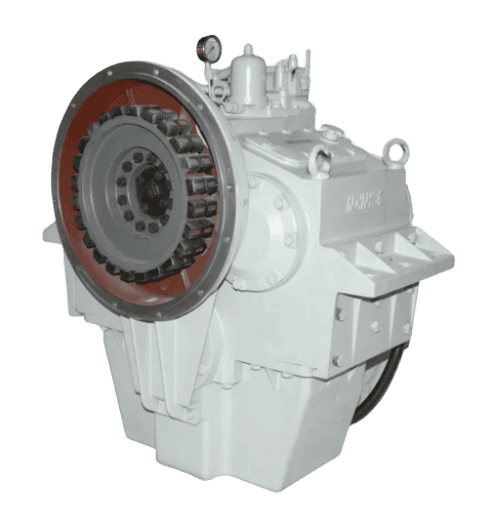

D300 Details
D300 Product Description
Technical Specifications
| Medium/Heavy Duty Gearbox | |
|---|---|
| Reference number | A-D300A-4 |
| Brand | Advance |
| Model | D300A |
| Ratio | 4:1 |
| Power | 630 HP @ 1800 RPM |
| Max. Power | 805 HP @ 2300 RPM |
| RPM Range | 1000–2300 |
| Status | For sale |
| Rated propeller thrust | 60 KN |
| N/n | 0,35 HP/RPM |
| Features & Options | |
|---|---|
| SAE housing | Without / SAE-0 / SAE-1 |
| Controls | Mechanical / Electrical |
| PTO | Available |
| Note | If using flexible coupling, rate will rise 8% |
| Coupling size | 18 / 16 / 14 inch |
| Coupling type | Rubber block drive, with alu. ring / (High) flexible coupling |
| Dimensions | |
|---|---|
| Vertical offset | 355 mm |
| L × W × H | 786 × 920 × 1040 mm |
| Net weight | 940 kg |
| Available Arrangements | 4,48:1 | 4:1 | 5,05:1 | 5,52:1 | 5,9:1 | 6,56:1 | 7,06:1 | 7,63:1 |
|---|---|---|---|---|---|---|---|---|
| Rate (HP/RPM) | 0,33 | 0,35 | 0,30 | 0,25 | 0,20 | 0,17 | — | — |
