D-Series Details

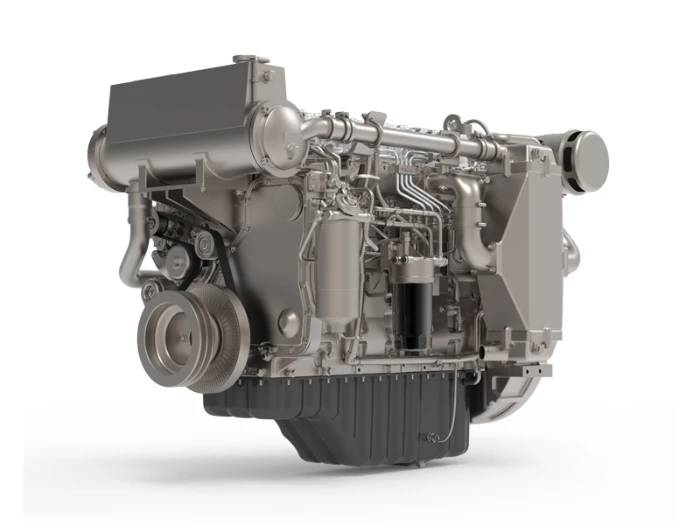

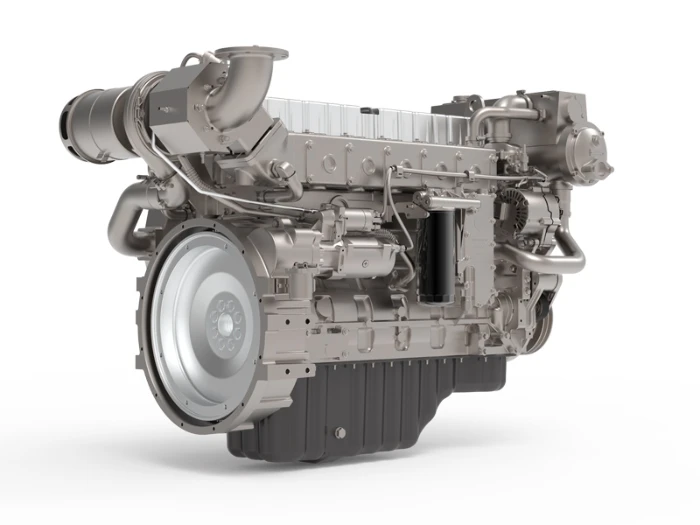

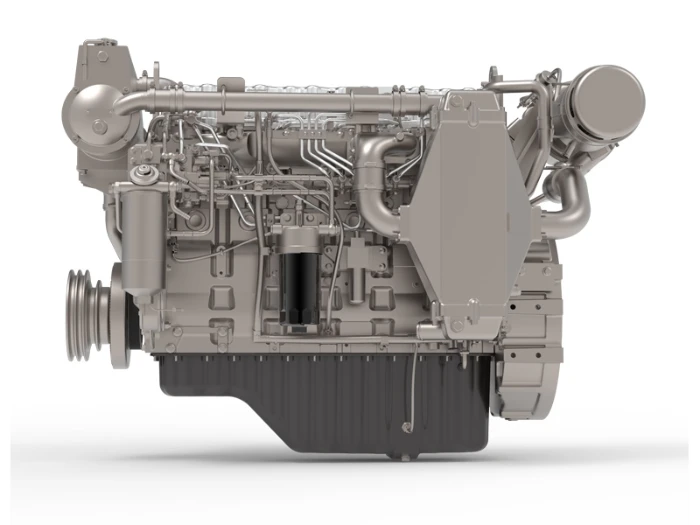

D Series Marine Diesel Engine
- 1. Optimized fuel injection & combustion: 6-hole high-pressure fuel injector combined with W-type combustion chamber optimizes air–fuel mixing. With an efficient fuel cooler, the engine delivers economy across a wide power range.
- 2. Durability & reliability: Wet alloy cast-iron cylinder liners, reinforced crankshaft and bearings, high load-capacity connecting rod bearings, water-cooled exhaust pipe, and electronic monitoring system ensure safe operation and minimize downtime.
- 3. Smooth operation: Optimized combustion with turbocharging and intercooling reduces pressure spikes during combustion, ensuring smoother and more complete burning with lower vibration and noise.
- 4. Compact & lightweight design: Compact bore spacing, low piston compression height, and integrated accessory layout reduce overall engine size and weight, simplifying maintenance.
Technical Specifications
| Model | D683 | SC9D |
|---|---|---|
| Type | Inline, Water-Cooled, 4-Stroke, Wet Cylinder Liner | |
| Bore × Stroke (mm) | 114 × 135 | 114 × 144 |
| Min. specific fuel
consumption (g/kW·h) |
195 | |
| Starting method | Electric start | |
| Firing order | 1-5-3-6-2-4 | |
| Noise level | ≤102 dB(A) | |
| Crank rotation (facing flywheel) | Counterclockwise | |
| Cylinders | 6 | |
| Displacement (L) | 8.3 | 8.9 |
| Oil consumption (g/kW·h) |
0.3 | |
| Certificates | CCS / IMO II | |
| Flywheel & housing | SAE 2# & 11.5# | SAE 1# & 14# |
| Overhaul interval | 20,000 hours | |
| Net weight (kg) | 800 | 950 |
| Dimensions (L × W × H) (mm) | 1420 × 837 × 1093 | 1476 × 930 × 1237 |
Technical Parameters
| Model | Type | Displacement (L) | Rated Power (kW) | Rated Power (HP) | Speed (rpm) | Aspiration | Fuel Control System | Interface Output | Weight (kg) | Certificates | Emission |
|---|---|---|---|---|---|---|---|---|---|---|---|
| D683ZLCA3B | 6 Cylinder / Inline | 8.3 | 219 | 298 | 2300 | TA | Mechanical | SAE 2# / 11.5' or SAE 1# / 14' | 800 | CCS | IMO TIER II |
| D683ZLCA8B | 6 Cylinder / Inline | 8.3 | 228.5 | 310 | 2330 | TA | Mechanical | CCS | IMO TIER II | ||
| D683ZLCA9B | 6 Cylinder / Inline | 8.3 | 259 | 352 | 2430 | TA | Mechanical | CCS | IMO TIER II | ||
| SC9D250.18CA1 | 6 Cylinder / Inline | 8.8 | 180 | 244 | 1800 | TA | Mechanical | 900 | CCS | IMO TIER II | |
| SC9D280.18CA1 | 6 Cylinder / Inline | 8.8 | 202 | 274 | 1800 | TA | Mechanical | CCS | IMO TIER II | ||
| SC9D280.21CA1 | 6 Cylinder / Inline | 8.8 | 202 | 274 | 2100 | TA | Mechanical | CCS | IMO TIER II | ||
| SC9D300.21CA1 | 6 Cylinder / Inline | 8.8 | 216 | 294 | 2100 | TA | Mechanical | CCS | IMO TIER II | ||
| SC9D320.18CA1 | 6 Cylinder / Inline | 8.8 | 230 | 312 | 1800 | TA | Mechanical | CCS | IMO TIER II | ||
| SC9D340.21CA1 | 6 Cylinder / Inline | 8.8 | 245 | 333 | 2100 | TA | Mechanical | CCS | IMO TIER II |
