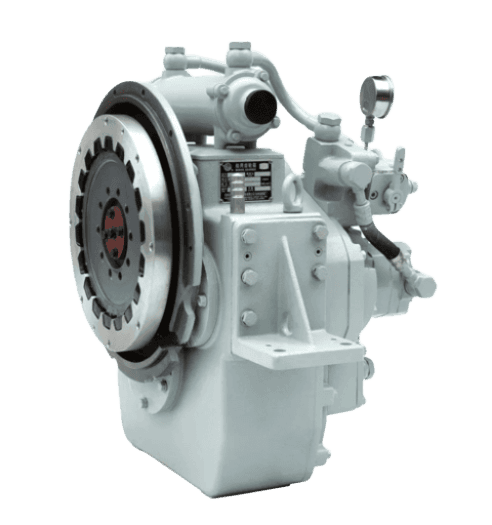

120C Details
120C Product Description
Technical Specifications
| Medium/Heavy Duty Gearbox | |
|---|---|
| Reference number | A-120C-1,48 |
| Brand | Advance |
| Model | 120C |
| Ratio | 1,48:1 |
| Power | 244,8 HP @ 1800 RPM |
| Max. Power | 340 HP @ 2500 RPM |
| RPM Range | 1000-2500 |
| Status | For sale |
| Rated propeller thrust | 25 KN |
| N/n | 0,136 HP/RPM |
| Features & Options | |
|---|---|
| Sae housing | Without/SAE-1/SAE-2/SAE-3 |
| Controls | Mechanical/ Electrical |
| Pto | Available |
| Note | If using flexible coupling, rate will rise 8% |
| Coupling size | 14 / 11,5 inch |
| Coupling type | Rubber block drive, with alu. ring / (High) flexible coupling |
| Dimensions | |
|---|---|
| Vertical offset | 180 mm |
| LxWxH | 352 × 694 × 650 mm |
| Net. weight | 225 kg |
| Available Arrangements | |||||
|---|---|---|---|---|---|
| Ratio | 1,48:1 | 1,94:1 | 2,45:1 | 2,96:1 | 3,35:1 |
| Rate | 0,136 HP/RPM | 0,122 HP/RPM | 0,109 HP/RPM | — | — |
